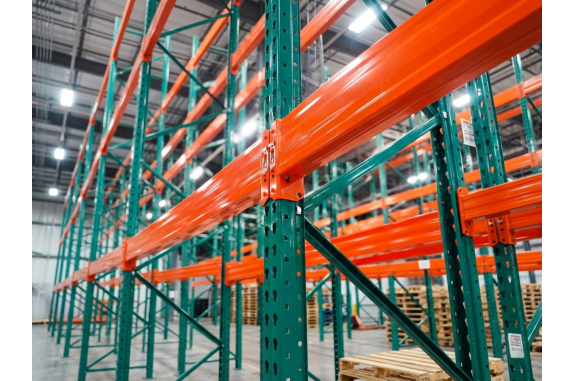

Pallet Racks Teardrop Uprights

Product code: Updating.......

Price: Contact

Order status: Stocking

Description:

General Introduction: Teardrop pallet racking is a popular heavy-duty storage system in the US, distinctively characterized by the teardrop-shaped punched holes on its upright frames. This design allows beam and bracing components to be easily engaged by hooking into place, offering effortless adjustability while maintaining high structural rigidity and optimizing storage capacity.

Material: Powder-coated steel

Load Capacity: 1,000 - 4,000 kg/level

Upright Frame: Roll-formed Omega profile with punched holes

Hole Pitch: 50.8 mm, 76.2 mm

Decking Type: Wire mesh decking, support bars, etc.

Finish Color: Standard Green – Orange or customized to client specifications

Access Method: Compatible with all types of forklifts

Warranty: 5 years

Request a call back

1. General Introduction

The distinct feature of this racking system lies in the punched holes along the upright posts, which are wide at the top and taper down at the bottom. This allows the rivets on the beams and bracing components to easily engage and drop into place, creating a highly rigid, self-locking structure.

Upright Framework (Height from 2m to over 12m): Fabricated from cold-rolled steel, with teardrop holes punched vertically along the post at a 2-inch (approx. 50.8mm) pitch, providing exceptional flexibility for adjusting beam levels.

Component / FeatureDetailed Specifications

A standard teardrop racking system comprises more than just uprights and beams. To maximize utility and better protect assets, the system should be equipped with:

Wire Mesh Decking: Enhances load-bearing capacity for weakened pallets or loose cargo, promotes air circulation, and complies with fire safety and prevention (FSP) standards.

Bracing Channels: Horizontal and diagonal bracing that connects the upright posts to ensure structural stability and resist torsional forces.
Pallet Support Bars: Steel channels placed horizontally across the two load beams to support the pallet\'s center of gravity.
Compliance with International Standards (RMI - US): Teardrop racking serves as a professional asset for clients whose operations strictly require compliance with international warehouse safety protocols.
Flexibility and Time-Saving Assembly: Since it features a boltless design, installing teardrop racking is 2 to 3 times faster than conventional racking. Furthermore, it is fully compatible with all common types of forklifts on the market.

6. Contact Us

If your enterprise has any inquiries regarding Teardrop Pallet Racking, contact us today for a free consultation and quotation!
