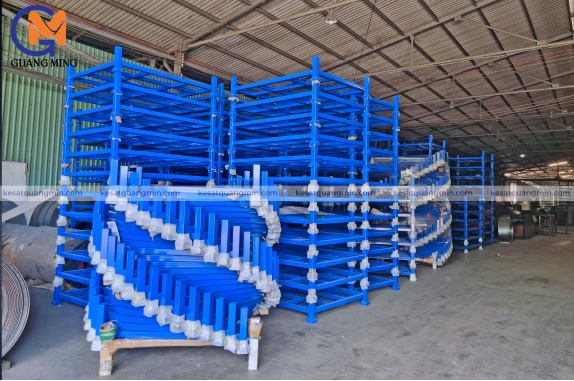

Stacking Pallet

Product code: Updating.......

Price: Contact

Order status: Stocking

Description:

General Introduction: Stacking Pallets represent the ultimate solution for businesses prioritizing storage flexibility in warehousing. These frames can be securely stacked atop one another to form a robust structure capable of bearing heavy loads without being anchored to the floor, while remaining effortlessly collapsible and relocatable whenever necessary.

Material: Powder-coated steel
Load Capacity: 300 – 4,000 kg/pallet
Finish Color: Standard Blue – Orange or customized per client request
Handling Method: All types of forklifts
Warranty: 5 years

Request a call back

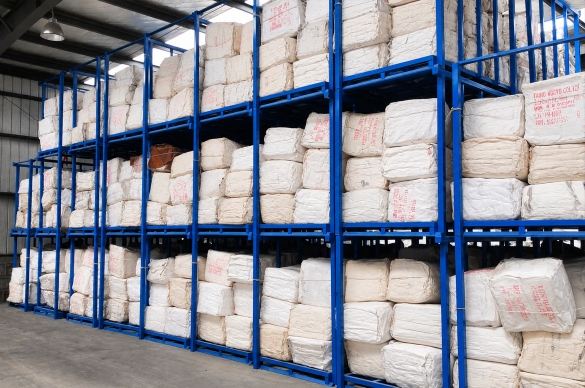

Unlike Selective Pallet Racking systems which are anchored permanently to the floor, stacking pallets operate completely independently—requiring no anchor bolts, no wall drilling, and no floor fastening. This outstanding feature makes them widely preferred across warehouses, manufacturing plants, production workshops, distribution centers, and supermarkets.

A standard stacking pallet rack consists of the following main components:

Base Frame:
Four corner columns made of round or square steel tubes, engineered to withstand vertical compressive loads when stacked multiple tiers high.
Top Frame:
Depending on the type of goods stored, this can be wire mesh, perforated steel plates, or support crossbeams.

Locking Pins / Positioning Guides:3. Standard Technical Specifications

Details
Dimensions	1200x800 mm, 1200x1000 mm, 1100x1100mm
Clear Height per Tier	700 mm – 1000 mm
Maximum Stacking Capacity	4 – 6 tiers (depending on load weight)
Load Capacity per Tier	300 – 4000 kg
Frame Material	Structural steel
Standard Colors	Blue, orange, yellow, or customized per request
Surface Treatment	Powder coating, Hot-dip galvanization
Base Type	Flat feet, Tubular feet

Advantages:

✅ Maximize Warehouse Space Efficiency:
Free from floor or wall anchoring, an entire loaded unit can be relocated by a forklift to another position within seconds.
✅ Seamless Scalability:
Compared to Selective, Drive-in, or Teardrop racking systems, the capital expenditure for stacking pallet racks is significantly lower for the equivalent storage volume.
✅ Enhanced Protection with Enclosed Models:
The base openings are engineered to match standard forklift tines (150 – 220 mm), ensuring seamless operation with diesel forklifts or high-lift pallet jacks.

Stacking height is constrained by post-load capacities and structural stability risks. As the stacking height increases, the load capacity per tier should be proportionally derated.

❌ Poor Selective Accessibility for Bottom Tiers:LIFO (Last-In, First-Out)
Unlike medium-duty shelving which allows manual picking, the stacking, unstacking, and moving of these frames strictly require material handling equipment.
